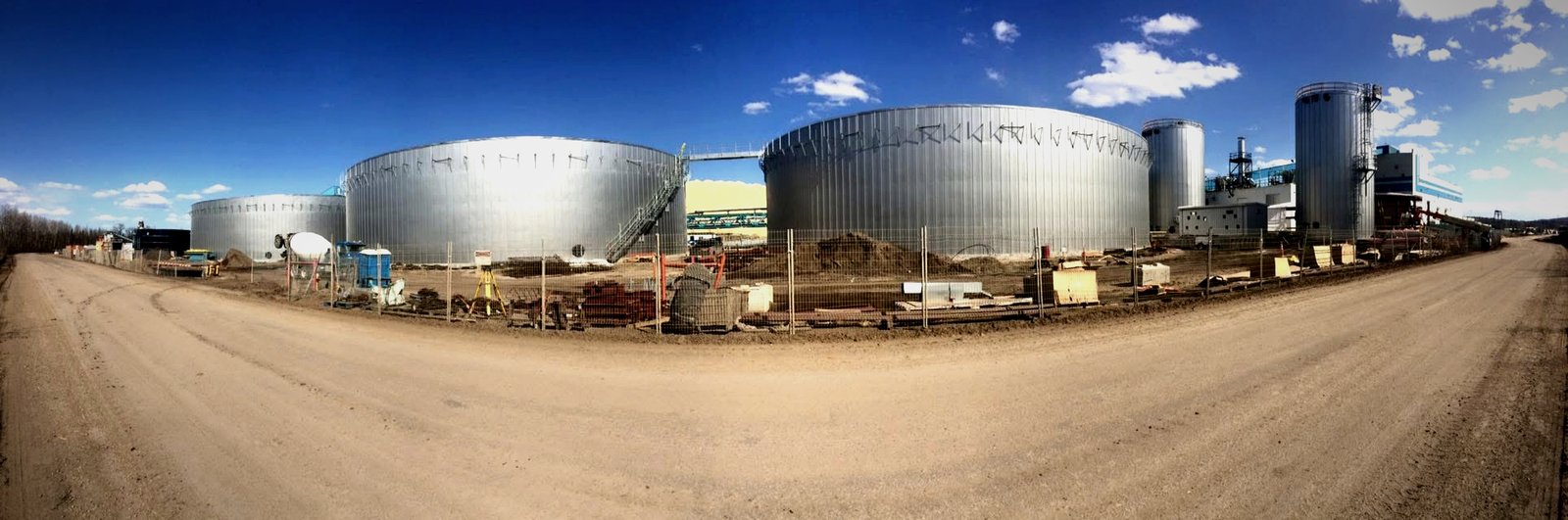

Industrial tank farm in Canada with pre-fabricated standing-seam insulated tanks under blue Alberta sky
Edmonton-Built · Designed for Canadian Industry

Canada’s Only Standing-Seam Tank Panel Manufacturer.

The MaxFab Tank Panel System (formerly the Enerpro Tank Panel System) — pre-fabricated double-lock standing-seam insulation. No scaffolding. No welding on sidewalls. Designed to outlast everything else on the tank.

Start a Project Download the Spec Sheet
40+
Years Combined
Insulation Expertise
25+
Year Maintenance-Free
Panel Lifespan
−196°/+650°C
Insulation Specified to Your
Operating Temperature
CA
Canada's Only
Standing-Seam Manufacturer

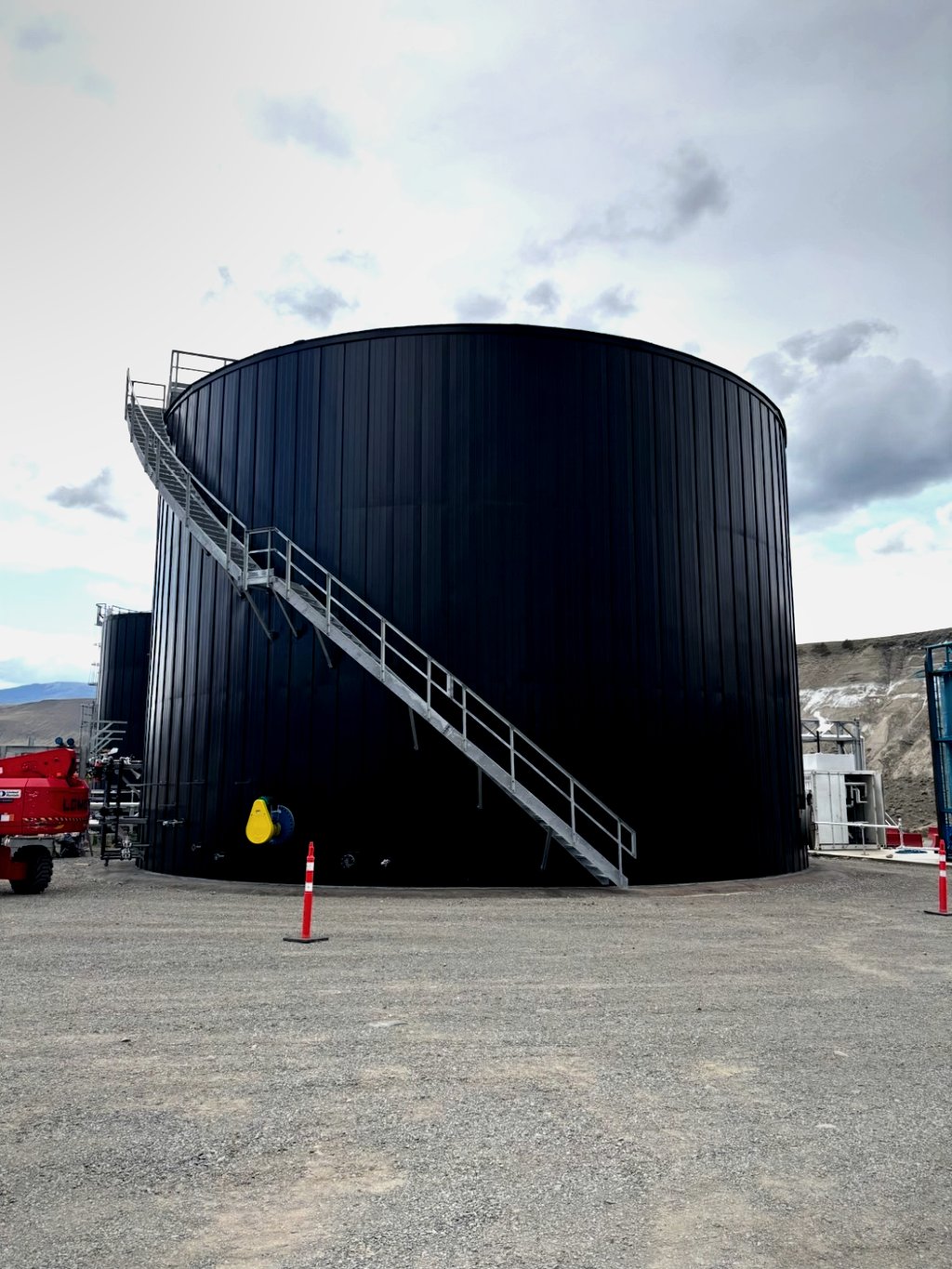

Black-finished pre-fabricated insulated tank with spiral access staircase, installed in British Columbia interior
MaxFab Tank Panel System Sealed-envelope double-lock standing seam · Installed in BC interior
The Flagship System

Designed to Outlast Everything Else on the Tank.

Pre-fabricated panels. Insulation laminated to pre-formed metal jacketing. Sealed with a mechanically folded double-lock standing seam. No water penetration. No corrosion under insulation. No compromise.

  • Double-lock standing seam. Weather-tight mechanical seal — no rivets, no penetrations.
  • Insulation specified to your application. Closed-cell, mineral wool or fibreglass — selected for your operating temperature and performance spec.
  • Built for the Canadian environment. A sealed metal envelope that stands up to hard freeze-thaw cycling, wind and UV.
  • Cone, dome, cylindrical. Custom-fabricated to your exact tank dimensions.
  • 25+ year maintenance-free service life. Lowest total cost of ownership in the category.
Exclusive to MaxFab
Built Under One Roof

One System. Built End to End, In-House.

No middlemen. No subcontracting. No coordination delays between vendors. Every MaxFab Tank Panel System panels is designed, CNC-cut, formed and sealed in our Edmonton facility — by the same team, with one point of accountability from drawing to delivery.

01 Pre-fabricated standing-seam tank panel system installed on an industrial storage tank

Custom-Designed to Your Tank

Every panel is designed to the exact dimensions, geometry and operating temperature of your tank — cone, dome or cylindrical.

02 Precision CNC plasma cutting and metal forming of tank panel components

CNC-Cut & Formed In-House

Precision plasma cutting and metal forming on our own equipment — every panel and component the system needs, with nothing outsourced.

03 Double-lock standing-seam detail on a finished insulated tank panel

Sealed & Shipped Ready to Install

Insulation laminated, the double-lock standing seam closed, and delivered to site ready to go up — no scaffolding, no welding on the tank.

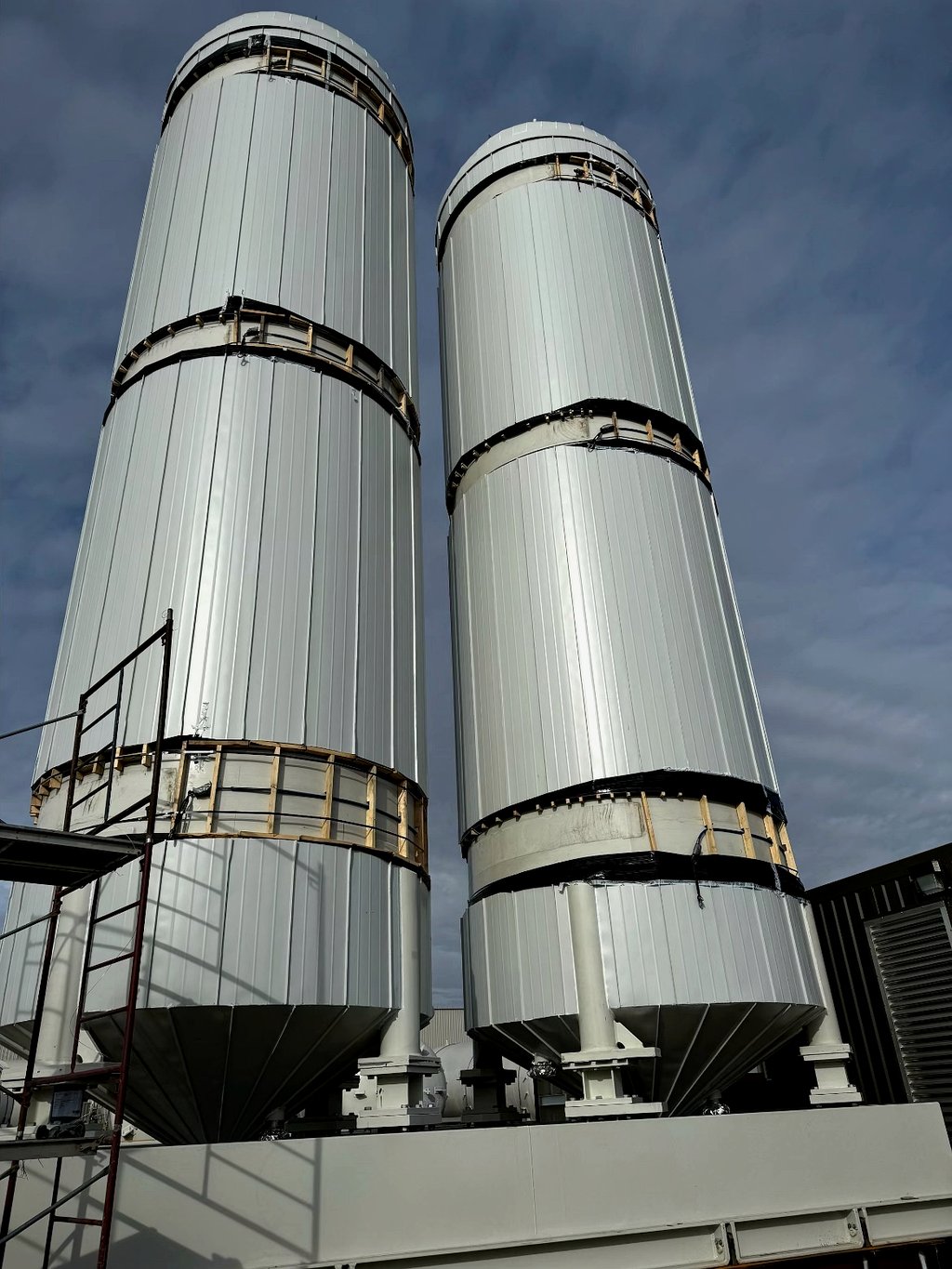

Twin pre-fabricated insulated tower vessels at industrial site
Built in Alberta. Installed across Canada.
The MaxFab Advantage

Why Operators Choose Us Over U.S. Imports.

Every other standing-seam tank insulation manufacturer ships from the U.S. South. That means cross-border logistics, duties, longer lead times, remote support. We do not.

  • 01

    Edmonton-Built

    Panels fabricated in Alberta. No cross-border shipping, no customs delays, no duties.

  • 02

    Domestic Lead Times

    Faster quotes, faster delivery — no cross-border shipment to wait weeks on.

  • 03

    Vertically Integrated

    Design, CNC cutting, forming and sealing — every step of the panel system under one roof. One supplier, one accountable team.

  • 04

    Designed for Canadian Conditions

    Built for Canadian winters and summers — not adapted from U.S. specs.

Our Work

Projects Across Canada.

From oil-sands tank farms to river-valley industrial facilities. Every installation, real work, real Canadian conditions.

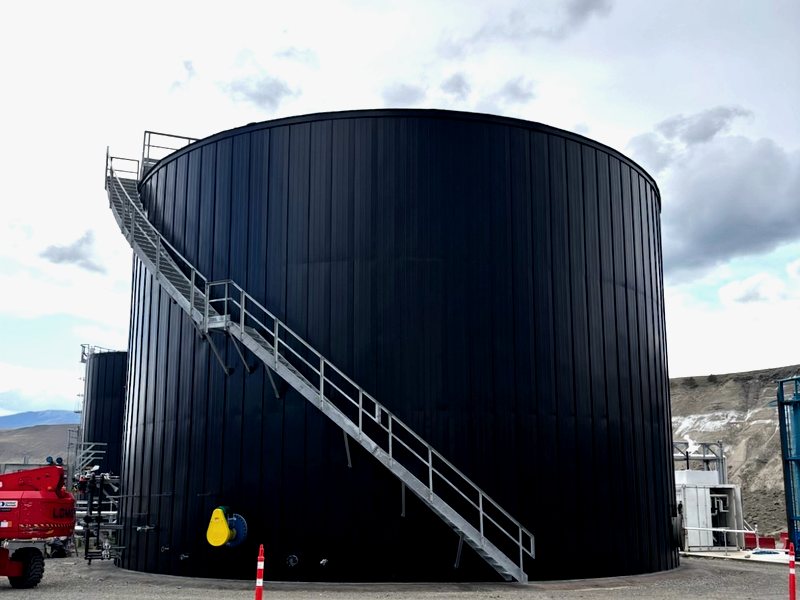

Black-finished insulated tank with spiral staircase

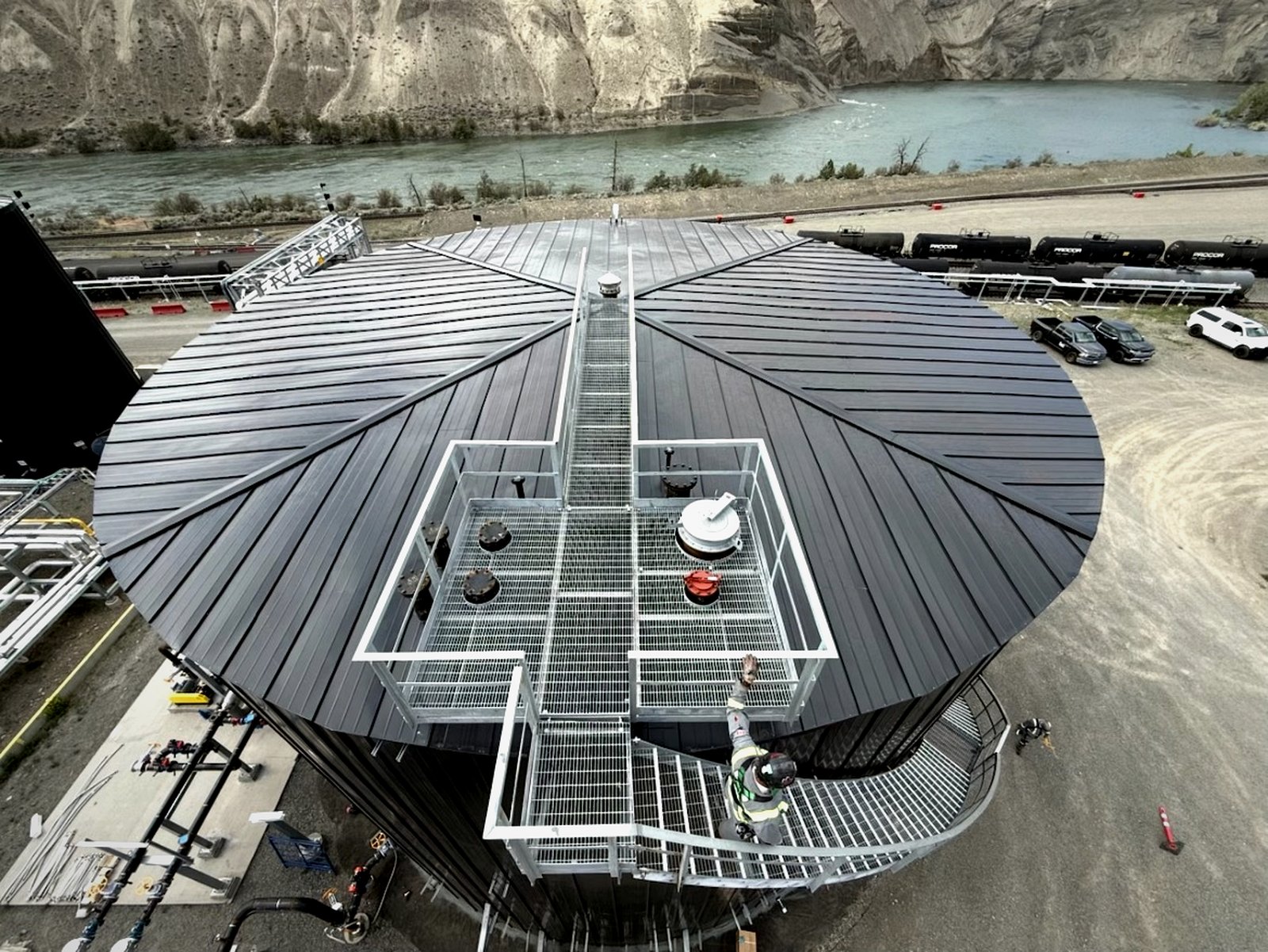

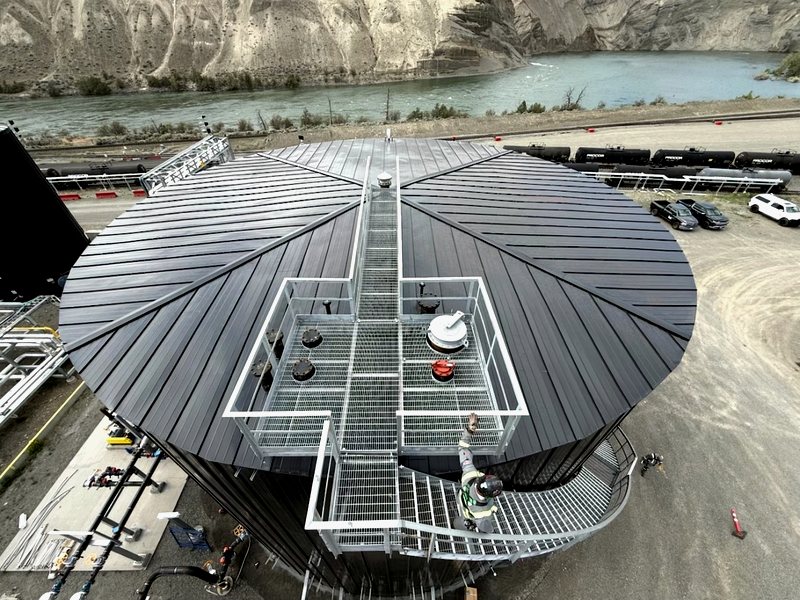

Aerial cone roof with standing-seam pattern over river canyon

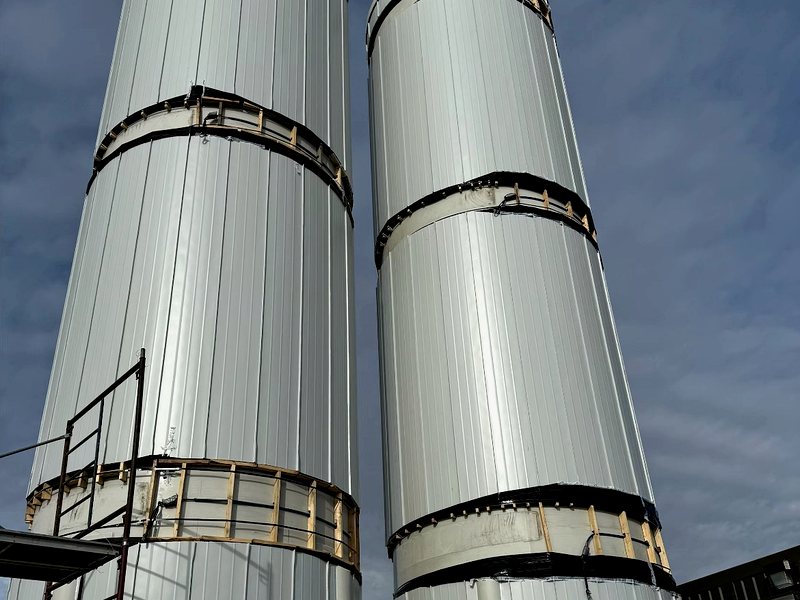

Twin insulated tower vessels at industrial site

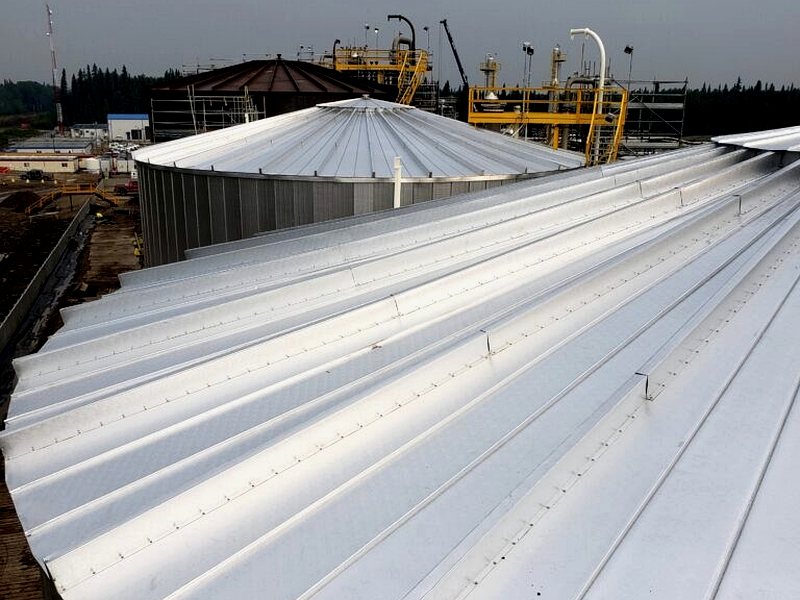

Insulated dome roof with standing-seam panels and crane

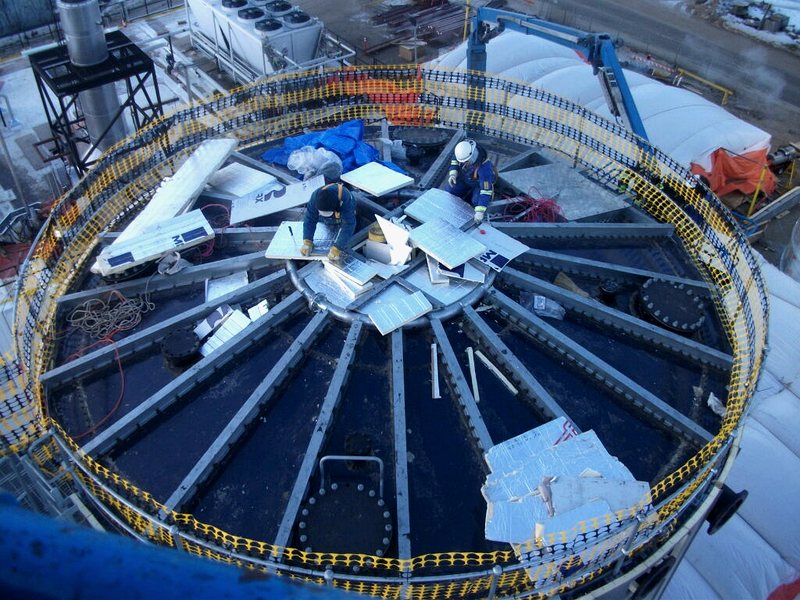

Insulated tank with boom lift in winter conditions

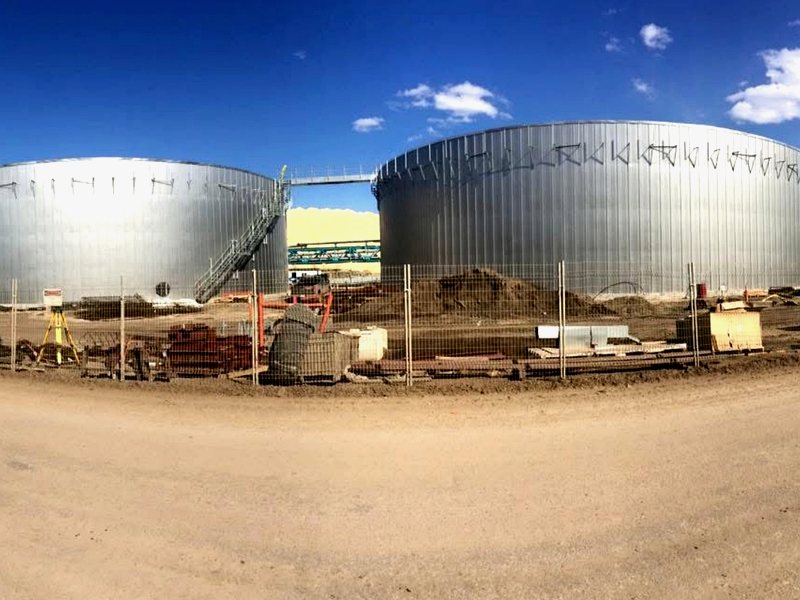

Panoramic view of insulated tank farm in Alberta

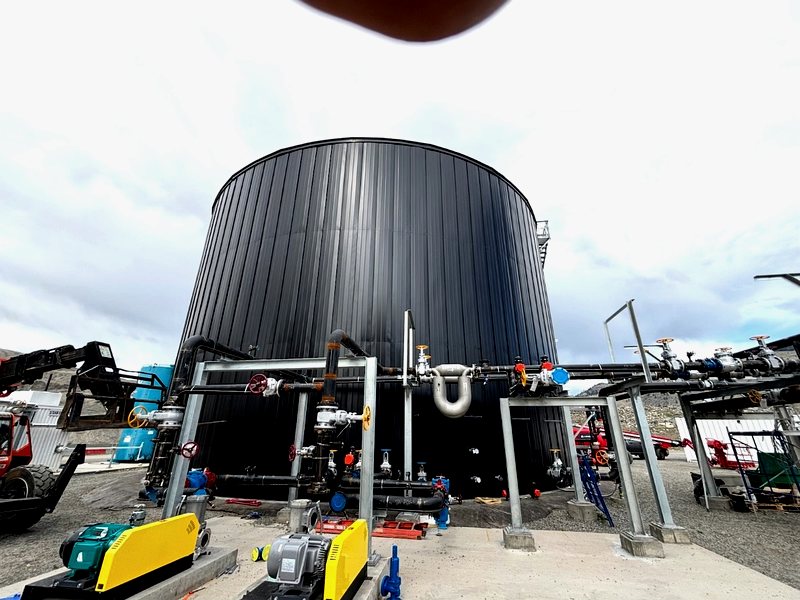

Large dark insulated tank at industrial site

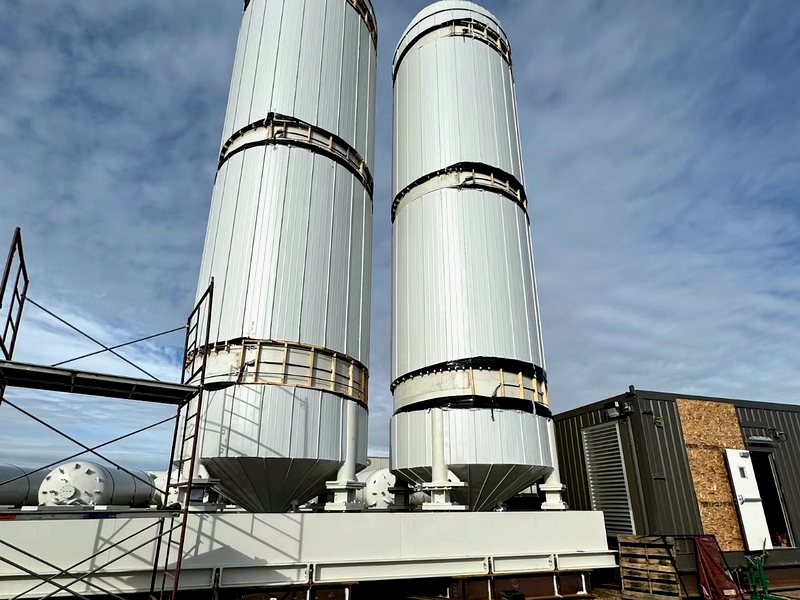

Twin hopper-bottom vessels with standing-seam panels

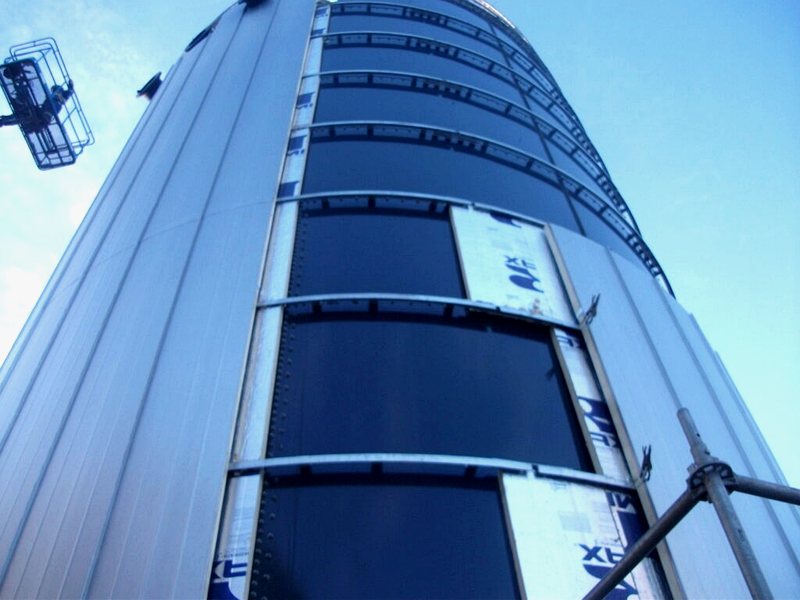

Aerial view — workers installing insulation panels on tank roof

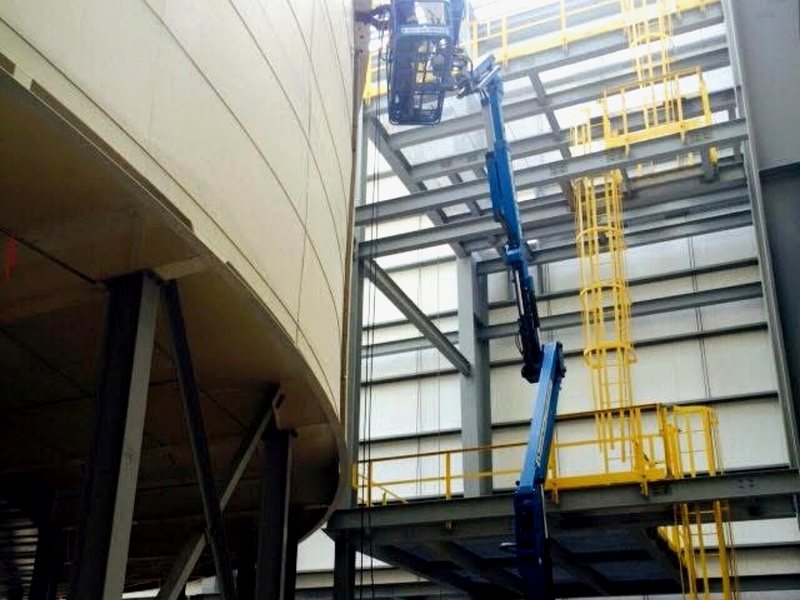

Crew installing panels using boom lift

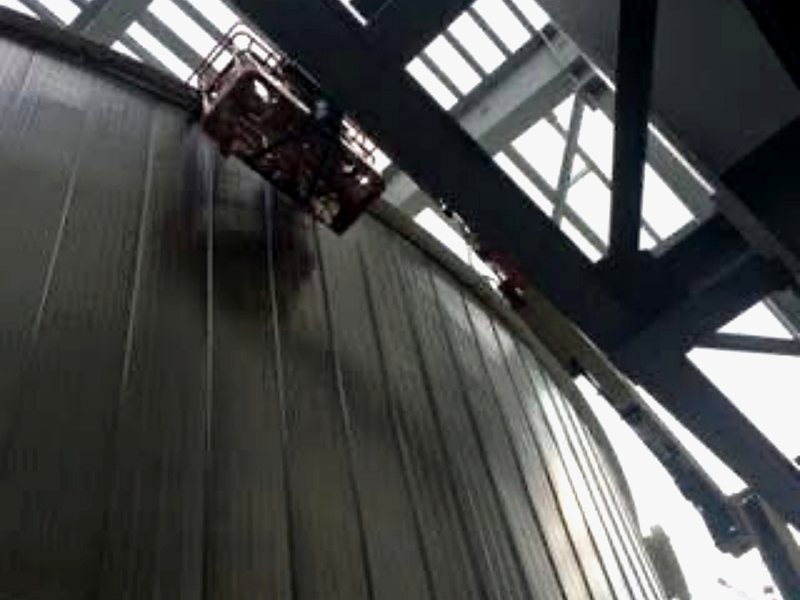

Standing-seam panel detail on curved tank surface

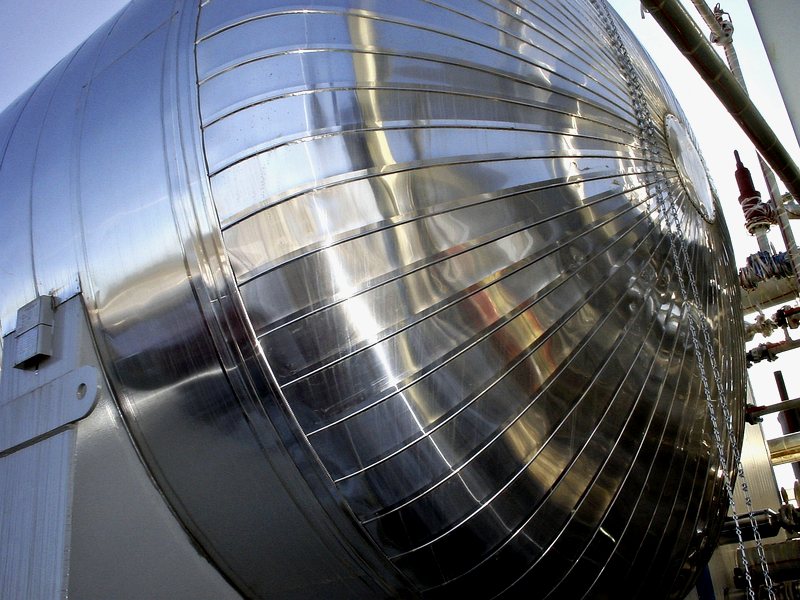

Elliptical head fabrication detail

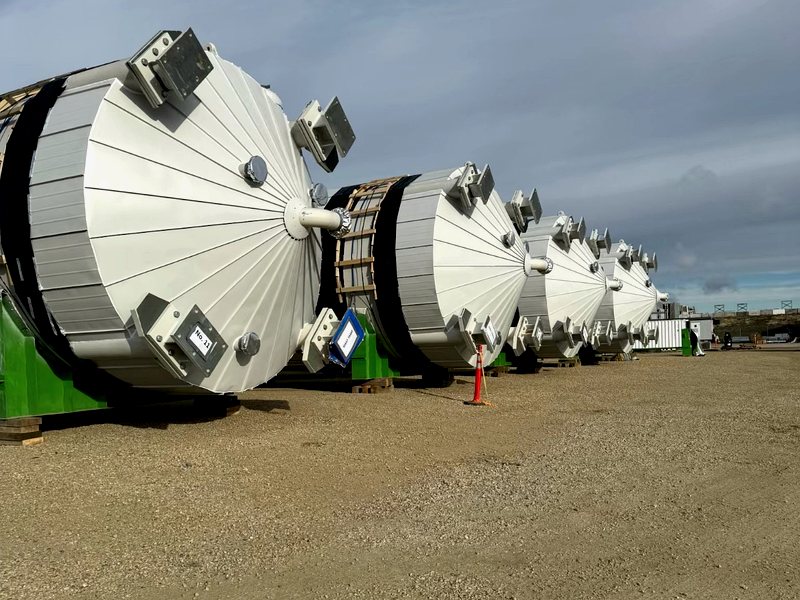

Pre-fabricated insulated vessels lined up for delivery

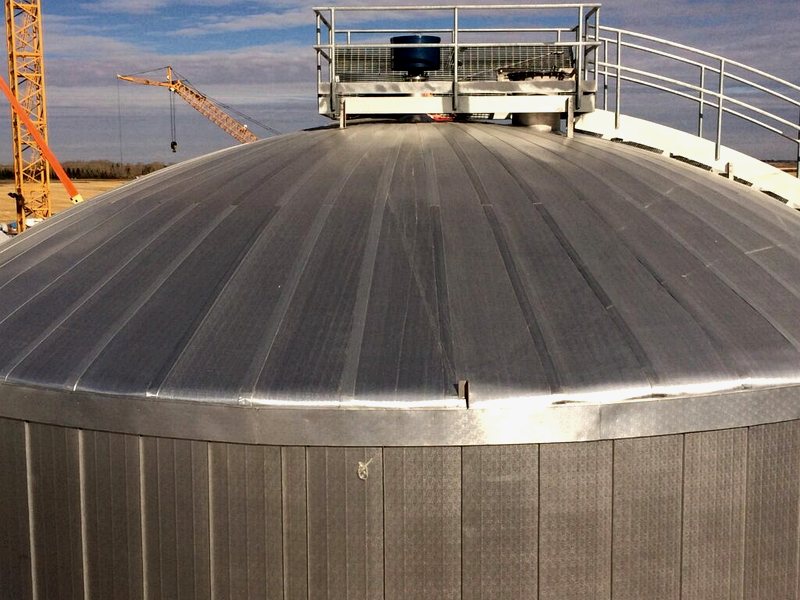

Large insulated tank with structural supports and walkway

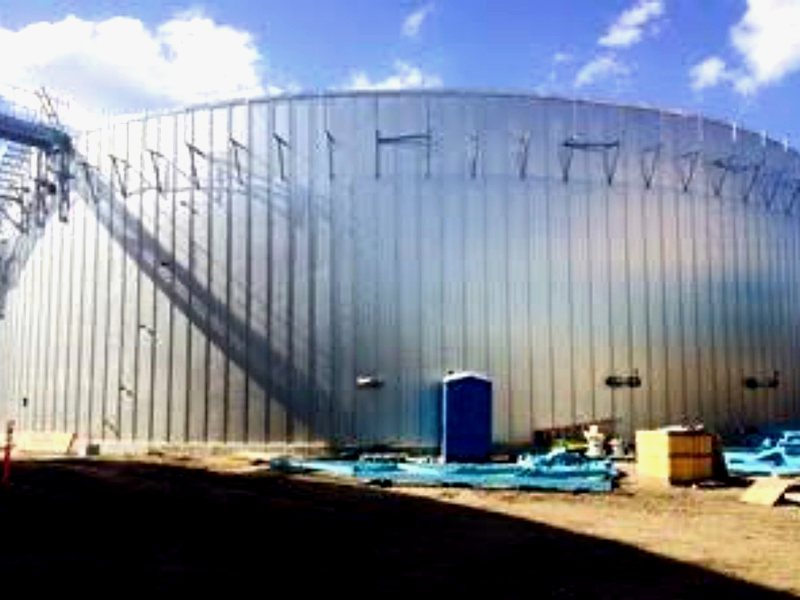

Wide-format insulated storage tank
Specifier Resources

Documents Procurement and Engineering Teams Actually Use.

Specification sheet, installation procedure, CSI Section 07 21 16 insert, case study. No registration. No gates.

Specifier-grade spec sheet

MaxFab Tank Panel System — Specification Sheet

Materials of construction (ASTM standards), dimensional tables, attachment hardware, performance characteristics. 7-page PDF.

Download
Installation procedure

Field Installation Procedure

PPE, tools, cable tension specs, panel handling, seam closure, clip and wire-tie attachment, roof and penetration details. 5-page PDF.

Download
CSI MasterFormat insert

Section 07 21 16 — Specifier Insert

CSI-formatted Word document for direct insertion into project specifications. Part 1 General, Part 2 Products, Part 3 Execution.

Download
Case study

132 ft × 145 ft Oilsands Tank

One of the largest standing-seam tank panel installations completed in Canada. Dome roof, bottom cone, cylindrical shell.

Download
Technical reference

Corrosion Under Insulation — Reference

CUI failure mode, traditional jacketing limitations, sealed envelope design. Reference document.

Download
Comparison

Standing-Seam vs. Lap-and-Fastener Jacketing

Side-by-side technical comparison. Installation, lifecycle, failure modes, total cost of ownership.

Download
Technical Reference Articles
Common Questions

Answers Procurement and Operations Teams Ask Us First.

If your question isn’t here, send it on the form below — we reply within one business day.

What makes the MaxFab Tank Panel System different from traditional tank insulation?
Traditional tank insulation uses fibrous materials wrapped in horizontal bands. Over time, these absorb moisture, lose thermal performance, and cause corrosion under insulation (CUI). The MaxFab Tank Panel System uses the insulation core specified to your application — closed-cell polyisocyanurate, mineral wool, or fibreglass — laminated to pre-formed metal jacketing and sealed with a mechanically folded double-lock standing seam. No rivets, no screws, no penetrations. Designed for 25+ years of maintenance-free service.
Why choose a Canadian manufacturer over a U.S. supplier?
Every other standing-seam tank insulation manufacturer in North America is based in the United States. Choosing a Canadian manufacturer means no import duties, no cross-border freight delays, no currency exchange exposure, and a local team that understands Canadian operating conditions. MaxFab manufactures in Edmonton and delivers directly to industrial sites across Canada.
Does the tank need to be shut down during installation?
No. The MaxFab Tank Panel System installs without any welding to the tank shell. Panels are anchored using an internal cable-and-clip system, and seams are formed mechanically. The tank remains fully operational throughout the entire installation process. No hot-work permits are required.
What temperatures can the system handle?
The insulation core is specified to your application’s operating temperature. Across the material options, the system serves cryogenic applications from approximately −196 °C (closed-cell PIR) up to high-temperature process applications around +650 °C (high-temperature mineral wool). Specific temperature ratings depend on the core material chosen for your project.
What insulation materials does MaxFab use?
Three core options are available depending on application: closed-cell polyisocyanurate (PIR) for cold and cryogenic service; rigid mineral wool board for hot and high-temperature process service; and fibreglass when specified by the client. The right core is selected for each project based on operating temperature and performance requirements.
How long does installation take?
Significantly less time than traditional methods. Because panels are pre-fabricated in our Edmonton facility to exact tank dimensions, the majority of labour happens indoors before the panels reach your site. On-site installation is designed for a small crew working from a boom lift — no scaffolding setup or teardown. MaxFab can coordinate experienced installation contractors on your behalf.
What’s the expected lifespan of the panel system?
25+ years, maintenance-free. The double-lock standing seam maintains its weather-tight seal through decades of thermal cycling and weather exposure, and the closed-cell or non-absorbent material options do not degrade through moisture absorption.
What tank shapes and sizes can MaxFab insulate?
The MaxFab Tank Panel System is custom-designed for each project. Cone roof tanks, dome roof tanks, and cylindrical tanks of all diameters. Every panel is fabricated to match your tank’s exact dimensions, including accommodations for nozzles, manways, stairs, and other protrusions. MaxFab has insulated tanks up to 132 ft diameter by 145 ft high.
How does the MaxFab Tank Panel System prevent corrosion under insulation (CUI)?
Two mechanisms work together. First, the double-lock standing seam creates a sealed exterior envelope with no rivets, screws, or penetrations where water could enter. Second, the moisture barrier (Surlyn by DuPont) heat-laminated to the interior of the aluminum jacketing prevents moisture contact with the jacket interior. The combination is designed to prevent the conditions that cause CUI.
Does MaxFab handle the full project or just supply panels?
MaxFab designs and manufactures the panels in our Edmonton facility — including the CNC plasma cutting, metal forming, lamination, and double-lock seaming. We also coordinate experienced installation contractors on your behalf. From scope to fabricated panels to installation coordination — one point of contact for the project.
Tank Insulation Glossary

Quick reference for the language used on this page.

CUI — Corrosion Under Insulation
Localized corrosion of metal beneath thermal insulation, most aggressive on carbon steel between −12 °C and 175 °C. Caused by moisture trapped against the jacket interior. The MaxFab sealed-envelope double-lock seam is designed to prevent the conditions that allow CUI to develop.
Double-Lock Standing Seam
A mechanical metal-to-metal joint formed by folding adjacent panel edges twice. Weather-tight without rivets, screws, sealants, or penetrations. The same seam technology used in architectural metal roofing.
Polyisocyanurate (PIR)
A closed-cell rigid foam insulation. Industry-typical operating range roughly −196 °C to +150 °C. Does not absorb moisture, so its K-value remains stable for decades. Used in MaxFab Tank Panel System panels for cryogenic and cold-service applications including LNG.
Mineral Wool
A non-combustible fibrous insulation made from molten rock or slag spun into fibres. High-temperature service to approximately +650 °C for industrial board products. Used in MaxFab Tank Panel System panels for hot and high-temperature process service.
K-value (Thermal Conductivity)
A material’s ability to conduct heat. Lower is better for insulation. PIR is around 0.022–0.027 W/(m·K); mineral wool varies by density and temperature. K-value is the foundation of all heat-loss calculations.
Jacketing
The outer metal skin of an insulated tank. The MaxFab Tank Panel System uses ASTM B209 wrought aluminum (alloys 1100, 3003, 3105-H14) in 0.016″ to 0.032″ thicknesses, with a Surlyn moisture barrier heat-laminated to the interior.
NFPA-22
The U.S. National Fire Protection Association standard for water tanks for private fire protection. Tanks under NFPA-22 require thermal protection that the MaxFab Tank Panel System supports.
Cone Roof Tank
A storage tank with a low-pitch conical top. Common in oil and gas storage. MaxFab Tank Panel System panels are custom-cut to match the cone radius, dome, or pie-segment geometry of the roof.
